Fresh Air Processing Indoor Unit (Large)

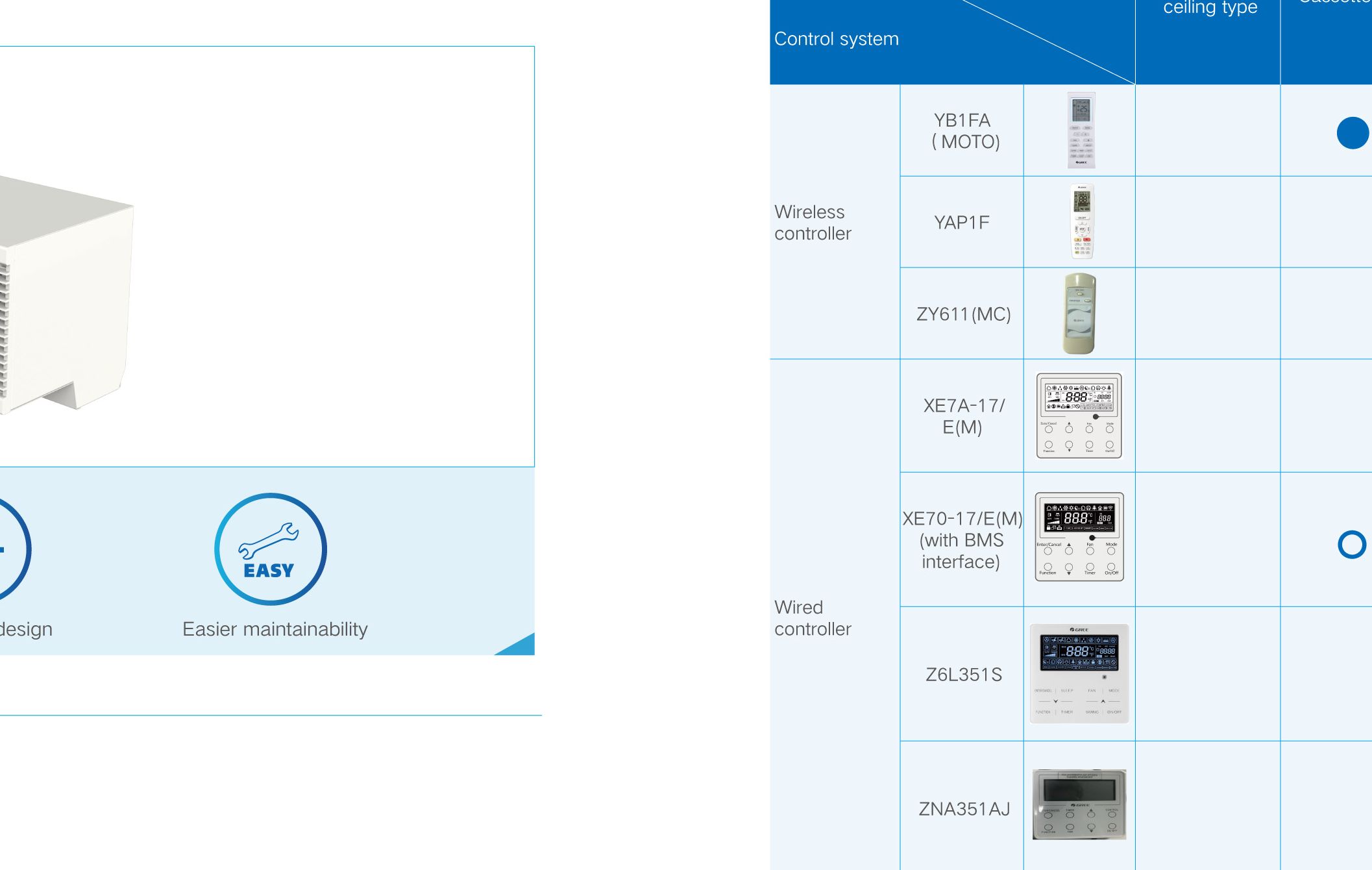

GMV-N AHU + Fresh Air Processing Indoor Unit + Control System Lineup serisi Fresh Air Processing Indoor Unit tipi ürün — 153.540 BTU / 45.0 kW kapasiteli. Large capacity fresh air processing indoor unit. 3-phase power. 4000 m3/h airflow. Sayfa 077/078: GREE CAC GMV-N serisi hava isleme ic unite teknik spec tablolari. Ust tablo GMV-N AHU modeller kombinasyonlarini, alt tablo Fresh Air Processing Indoor Unit modellerini kapsar. Sag: kontrolor uyumluluk matrisi. Teknik Özellikler: - Capacity cooling kw rated: 45.0 - Capacity heating kw rated: 32.0 - Capacity heating kw max: 35.0 - Power supply: 380-415V 3N~50Hz - Power consumption w cooling: 1280 - Power consumption w heating: 1240 - Airflow m3h: 4000 - Rated current a cooling: 3.4 - Rated current a heating: 3.4 - Sound pressure level dba: 58 - Connecting pipe liquid mm: Ø12.7 - Connecting pipe gas mm: Ø28.6 - Drain pipe mm: Ø33 - Drain pipe thickness mm: 2.0 - Dimension outline mm: 1700x1080x850 - Dimension package mm: 1895x1165x938 - Net weight kg: 200/256 - Loading quantity 20gp: 16 - Soğutma Kapasitesi (kW): 45.0 - Isıtma Kapasitesi (kW): 32.0 Model Kodu: GMV-N450FP/A(X4.0)-M
